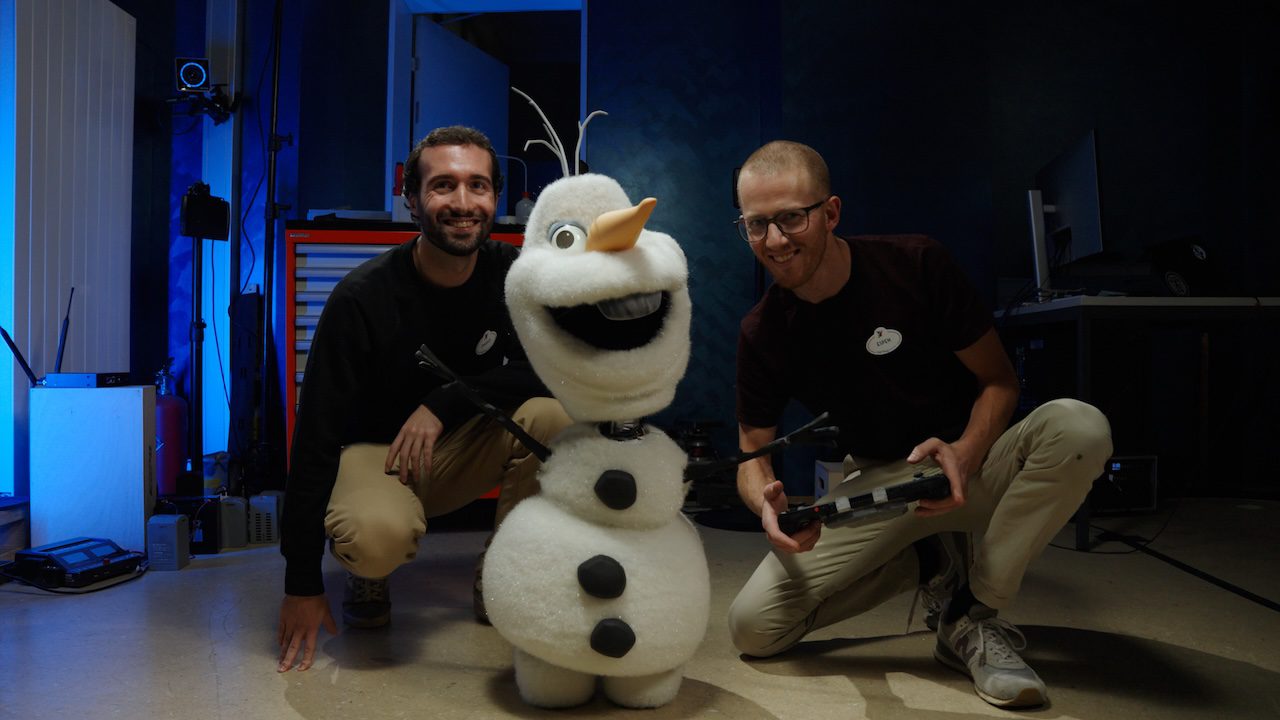

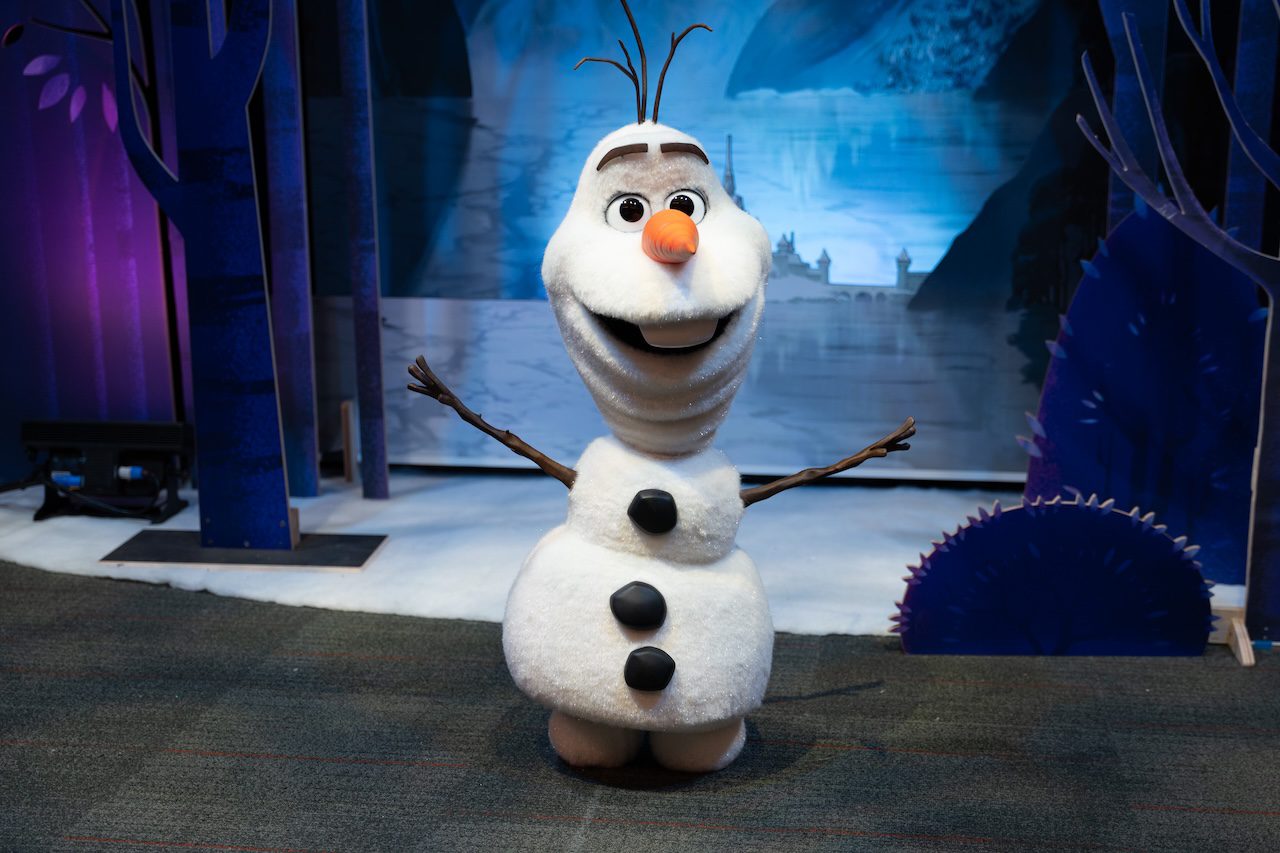

How Imagineers brought a free-roaming robotic Olaf to life

First introduced in Episode 7 of “We Call It Imagineering,” which focused on R&D, Olaf was brought to life using NVIDIA’s Newton physics engine. Imagineers also partnered with Walt Disney Animation Studios to ensure the robotic Olaf accurately represented his animated counterpart, including a fully articulated mouth and eyes, and the ability to speak and engage with guests. Olaf’s arms, nose, buttons, eyebrows, and hair are also magnetically attached, allowing for his signature “character gags.”

“Disney Research represents the very beginning of our development process when sparks of imagination begin turning into reality,” said Disney Experiences Chairman (and the next Disney CEO) Josh D’Amaro in the “We Call it Imagineering” episode.

Watch “We Call It Imagineering” Episode 7 here:

Olaf: Bringing an Animated Character to Life in the Physical World

In a research paper titled Olaf: Bringing an Animated Character to Life in the Physical World, Imagineering’s R&D team discusses the obvious challenges in bringing animated characters like Olaf to life in a theme park setting: that they “often move in non-physical ways and have proportions that are far from a typical walking robot.”

However, since a main function of Imagineering is to figure out how to do the impossible, the idea of a free-roaming robotic Olaf character provided an “ideal platform for innovation in both mechanical design and stylized motion control,” relying on reinforcement learning guided by animation references.

How They Did It

Since the robotic Olaf recreates a well-known animated character, he needed to move like the animated character, but Olaf has a large, heavy head, small snowball feet, and a non-physical motion style.

We are bringing an existing animated character to life, which requires navigating tradeoffs of functionality and believability within a tight design envelope.

From Olaf: Bringing an Animated Character to Life in the Physical World

According to the paper, the illusion of Olaf’s feet moving along his body was created by hiding two asymmetric legs under a soft foam skirt, with spherical and planar linkages in the arms, mouth, and eyes connected to actuators inside the character’s body. Olaf’s arms are spherical 5-bar linkages, each driven by two actuators; his head is driven by small actuators in his neck.

The biggest challenge was that Olaf’s feet in the Frozen movies are free-floating snowballs without visible legs. To replicate that, the robot’s legs are hidden inside the lower snowball, which is designed as a flexible “skirt” made of polyurethane foam. His legs are designed so that the left leg has a rear-facing hip roll actuator and a forward knee, and the right leg has a forward hip roll actuator and a rear-facing knee.

Olaf is the first of its kind, setting new standards for believability and design of a non-robotic character. We hope this work inspires the field to push the boundaries beyond standard bipedal and quadrupedal robots.

From Olaf: Bringing an Animated Character to Life in the Physical World

Watch Olaf: Bringing an Animated Character to Life in the Physical World here:

NVIDIA GTC 2026

Olaf will be featured at the NVIDIA GTC (GPU Technology Conference) 2026, the premier global Artificial Intelligence (AI) conference, which is taking place this week in San Jose, Calif.

• March 16, 2026 – Olaf joined NVIDIA President & CEO Jensen Huang onstage during his keynote address
• March 17, 2026 – Moritz Bächer, director of Disney Research Lab Zurich, will present Disney’s Robotic Characters: From the Screen to Reality via Physical AI
• March 19, 2026 – A panel with Bächer and partners from NVIDIA, Google DeepMind, and Skild to discuss the open-source Newton physics engine built on NVIDIA Warp and OpenUSD that advanced robot learning and helped bring Olaf to life.

More Disney Robotic Characters

Olaf may be the newest Disney robotic character, but he’s not the first.

“Disney is a leader when it comes to entertainment robots,” said Kyle Laughlin, SVP of Imagineering R&D. “We’ve got this rich legacy starting with Lucky, the dinosaur, all the way to Spider Man and our BDX droids.”

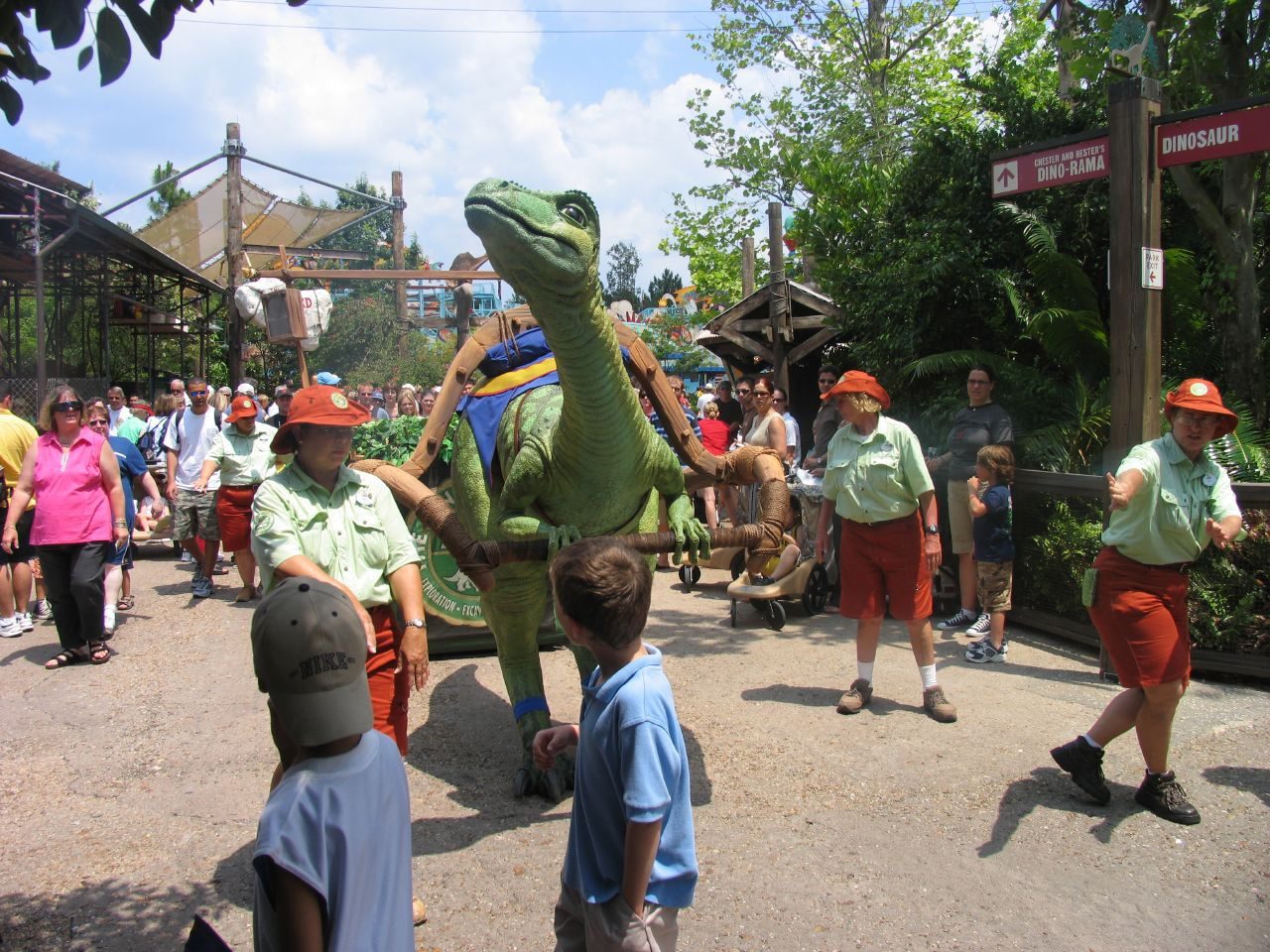

Lucky the Dinosaur

Lucky was introduced at Disney California Adventure as a test on August 28, 2003, and was thefirst Audio-Animatronics figure to walk freely and interact with park guests.

Lucky then moved to Orlando, where he made appearances in the DinoLand U.S.A. area at Animal Kingdom from June to August 2005, and celebrated the grand opening of Hong Kong Disneyland in September 2005.

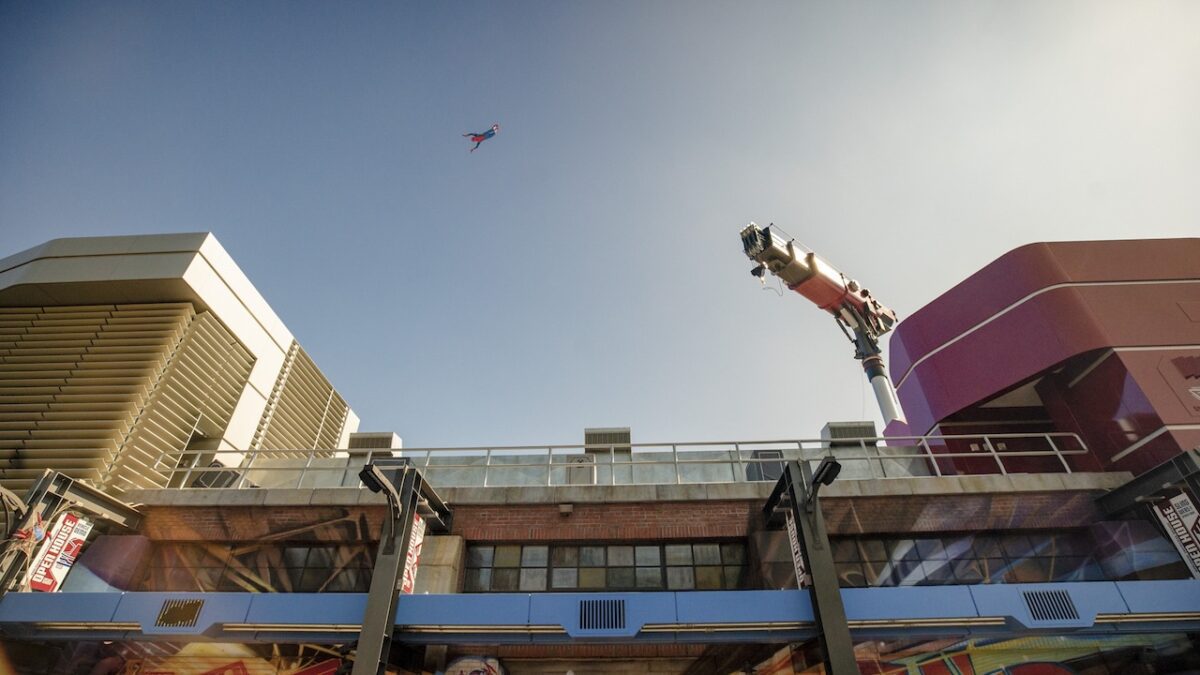

The Amazing Spider-Man

The Spider-Man Stuntronic—a stunt-double animatronic—debuted in Avengers Campus at California Adventure in 2021.

Imagineering R&D developed the advanced robotic figure to recreate superhero-worthy aerial stunts, thanks to onboard sensors that enable it to make real-time decisions on when to tuck, somersault, and slow its spin.

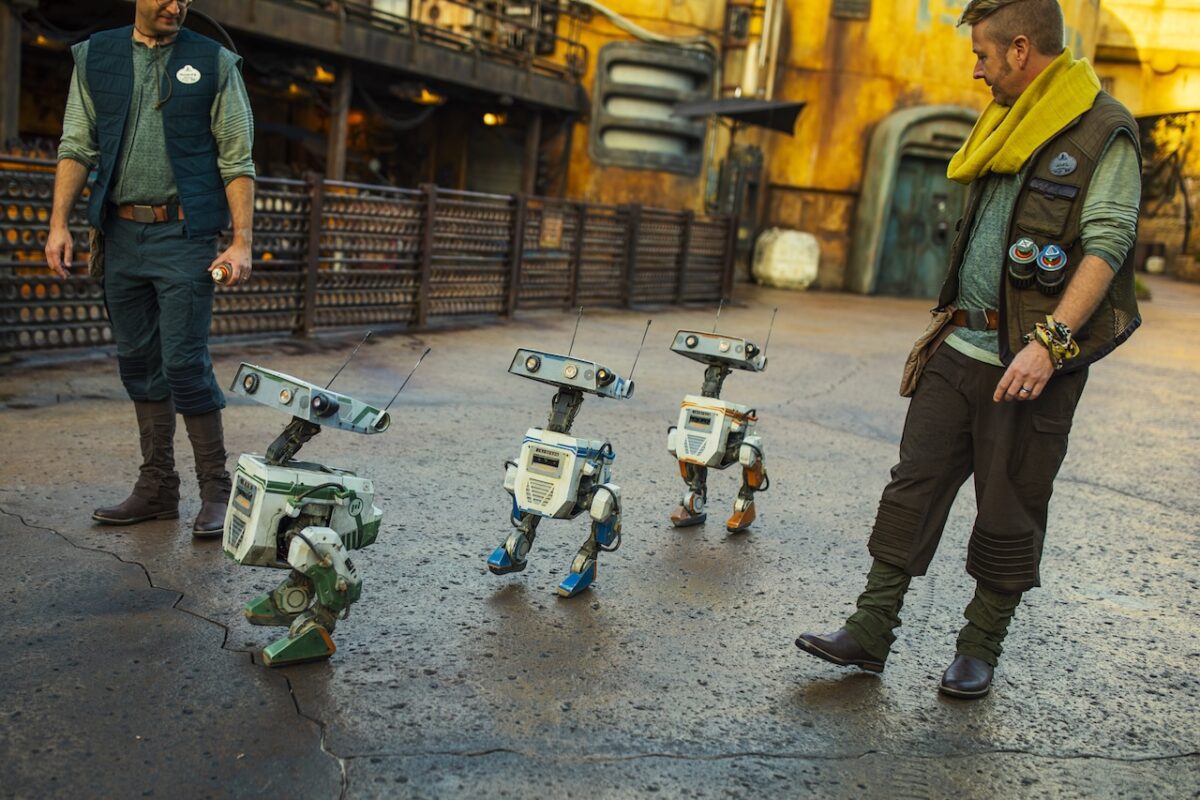

BDX Droids

The BDX droids were the first of a new generation of expressive, free-roaming robots that use reinforcement learning to move and balance like living beings.

The trio of adorable bipedal walking robots, who have personalities and characteristics of helpful Star Wars droids, have charmed theme park guests in Galaxy’s Edge and D23: The Ultimate Fan Event. The BDX Droids will soon appear in The Mandalorian and Grogu, which premieres in theaters on May 22, 2026.
